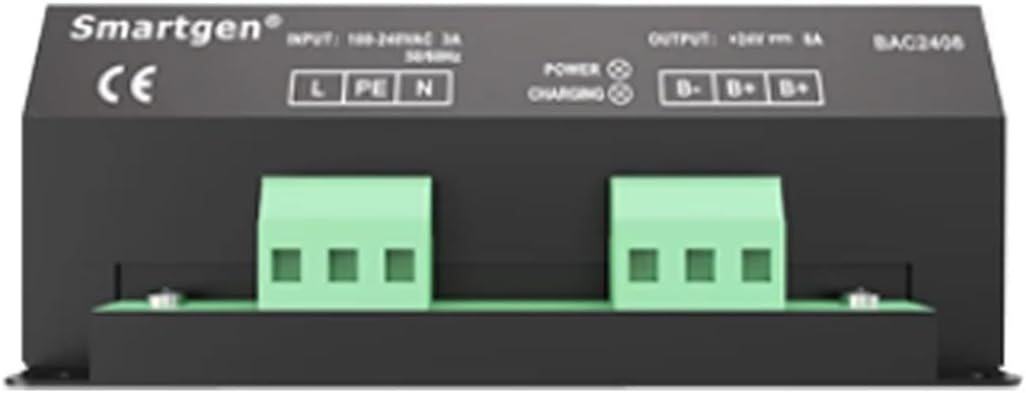

Battery Charger BAC2408 Specifically Designed for The Charging Characteristics of Lead-Acid Batteries for Engine Starti

Battery Charger BAC2408 Specifically Designed For The Charging Characteristics Of Lead-Acid Batteries For Engine Startifunction:BAC2408Float charging + two-stage charging + power factor compensation + 24V8AWorking power range: AC(100~240)VDimensions (mm) : 145.5*131*55Working temperature : (-30~+55)Weight : 0.9Performance characteristicsAdopt switching power supply structure, wide input AC voltage range, small size, light weight and high efficiency.The two-stage charging method (that is, the constant current first and then the constant voltage method) is used for automatic charging, fully charging according to the charging characteristics of the battery, which can prevent the lead-acid battery from being overcharged and can maximize the battery life.Built-in PFC circuit, the highest power factor can be calibrated to more than 0.99.The built-in current protection circuit can effectively protect the charger when the output is over-current, short-circuited or reversely connected, and the power indicator and charging indicator flash quickly as an alarm.It is suitable for charging 24V battery pack, and the rated charging current is 8A.External LED status display: green power light indication, red charging light indication.battery voltage: 24VMaximum charging current :8ARated input voltage range :AC(100~240)VMaximum input voltage range :AC(90~280)VAC frequency :(50/60)HzMaximum input current :3A<;3WPower factor compensation :HaveWay of working :two-stagehighest efficiency :90%Net weight (kg) :0.9Dimensions (mm) :145.5*131*55Pictures:==========Hign-concerned Chemical : NoneModel Number : Battery BAC2408AKey words: : Battery BAC2408AApplication: : for diesel generator
